SN74LVC1G32DRLR
Manufacturer:
Texas Instruments
Mfr.Part #:
SN74LVC1G32DRLR
Datasheet:
Description:

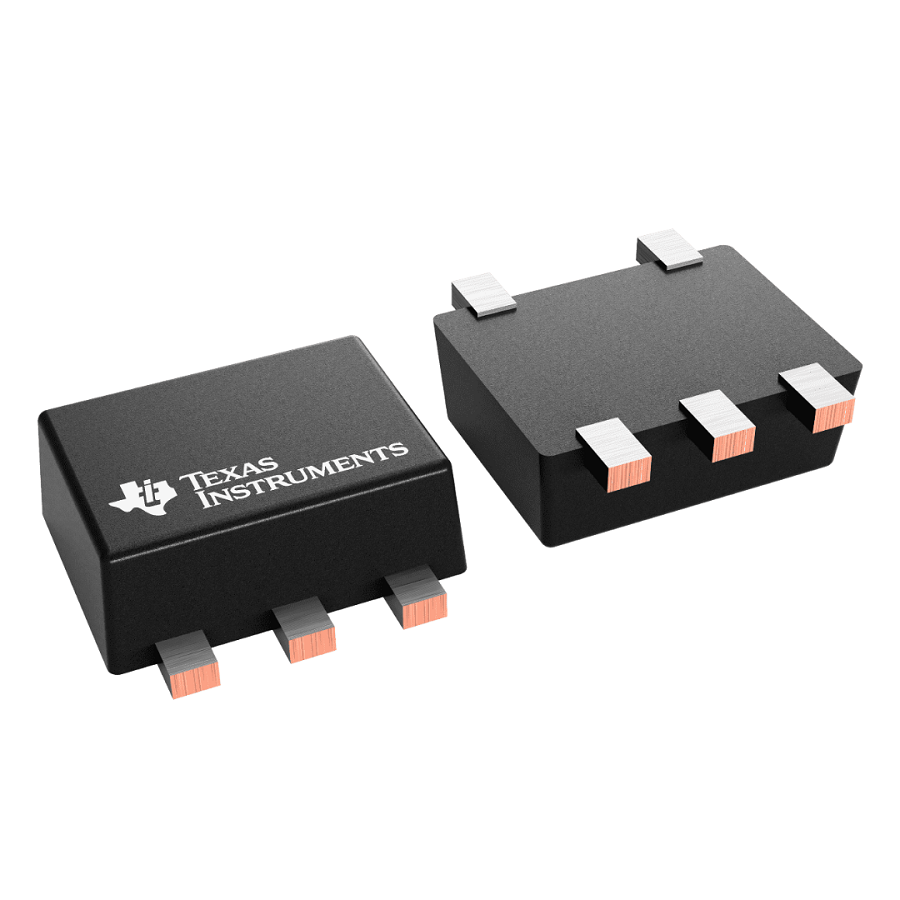

Logic Gates, Inverters SOT-553 SMD/SMT OR 74LVC Low Level Output Current:32 mA High Level Output Current:-32 mA Logic Level - Low:0.7 V to 0.8 V Logic Level - High:1.7 V to 2 V
| Parameter | Value |
|---|---|
| Length | 1.6 mm |
| Width | 1.2 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| Height | 0 mm |
| Packaging | Reel |
| Thickness | 0.55 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Number of Elements | 1 |
| Output Current | 32 A |
| Number of Circuits | 1 |
| Lifecycle Status | Production (Last Updated: 5 days ago) |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 1.65 V |
| Number of Bits | 1 |
| Quiescent Current | 10 µA |
| Propagation Delay | 4 ns |
| High Level Output Current | -32 mA |
| Low Level Output Current | 32 mA |
| Logic Function | OR |
| Number of Inputs | 2 |
| Number of Outputs | 1 |
| Number of Gates | 1 |
| Number of Input Lines | 2 |
| Number of Output Lines | 1 |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 days ago) |
| Logic Family | 74LVC |
| Logic Level - Low | 0.7 V to 0.8 V |
| Logic Level - High | 1.7 V to 2 V |
Stock: 22
Distributors
pcbx
pcbxUnit Price$0.08016
Ext.Price$0.08016
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.08016 | $0.08016 |
| 10 | $0.07919 | $0.79190 |
| 50 | $0.07824 | $3.91200 |
| 100 | $0.07738 | $7.73800 |
| 500 | $0.07653 | $38.26500 |
